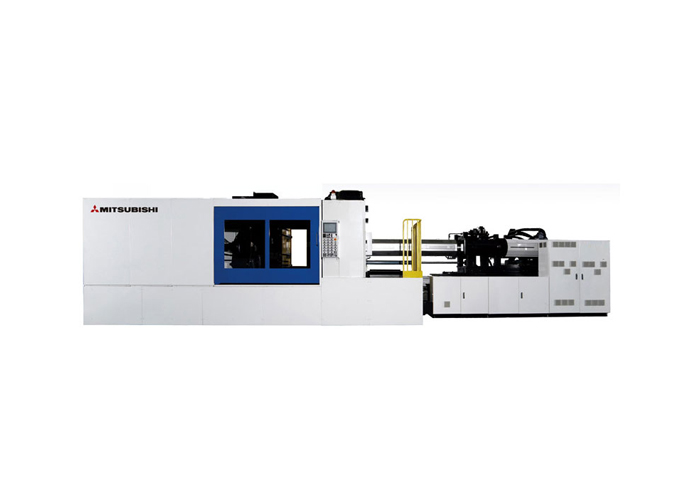

Mitsubishi MMX-Series 1050 Tons Machine
Mitsubishi has developed the latest of its hydraulically-driven injection molding machines -- "the MMX series" -- to meet the needs of emerging economies. The "MMX series" combines the latest technologies with experienced two-platen clamping and injection mechanism, and delivers excellent performance.With the ongoing surge in environmental awareness in recent years, there has been a growing demand, especially among the emerging economies, for injection molding machines that meet the following requirements - - low environmental impact, energy efficiency, high quality, high reliability, high productivity and low price. The latest "MMX series" hydraulic injection molding machines from Mitsubishi fully meet these customer needs.
| Injection Unit | Units | 1050MMX (160) | 1050MMX (240) |
|---|---|---|---|
| Screw Diameter | mm | 105 | 120 |
| Theoretical Injection Volume | cm³ | 4,540 | 6,780 |
| Injection Shot Mass (PS) | g | 4,180 | 6,240 |
| Injection Shot Mass (PE) | g | 3,360 | 5,020 |
| Max. Injection Pressure | MPa(kgf/cm2) | 177(1,800) | 177(1,800) |
| Injection Speed | mm/sec | 106 | 97 |
| Injection Rate | cm³/sec | 920 | 1095 |
| Plasticizing Capacity Polystyrene (PS) | kg/hr | 580 | 655 |
| Screw Speed | rpm | 139 | 168 |
| Clamping Unit | Units | 1050MMX (values) |
|---|---|---|
| Max. Mold Clamping Force | kN (tf) | 10,296(1,050) |
| Mould Opening Force | kN (tf) | 608(62) |
| Mold Closing Speed (High) | m/min | 45 |
| Mold Opening Speed (High) | m/min | 45 |
| Platen Size (H x V) | mm | 1,900×1,900 |
| Clearance Between the Bars | mm | 1,300×1,300 |
| Max. Clamp Stroke | mm | 1,750 |
| Max. Daylight | mm | 2,250 |
| Mould Height | mm | 500~1,100 |
| Ejector Force | kN (tonf) | 196(20) |
| Ejector Stroke | mm | 200 |
| General Unit | Units | 1050MMX (100) | 1050MMX (160) |
|---|---|---|---|
| Electric Motor Capacity | kW | 123 | 146 |
| Electric Heater capacity （380V/50Hz） | kW | 50.7 | 53.5 |
| Total hyd. system oil quantity[ In tank ] | L | 2.200 [1,700] | 2,600 [2,000] |
| Machine dimensions (L) | m | 10.4 | 11.1 |
| Machine dimensions (W) | m | 3.2 | 3.2 |
| Machine dimensions (H) | m | 3.0 | 3.0 |
| Shipping Mass | tons | 47 | 51 |
