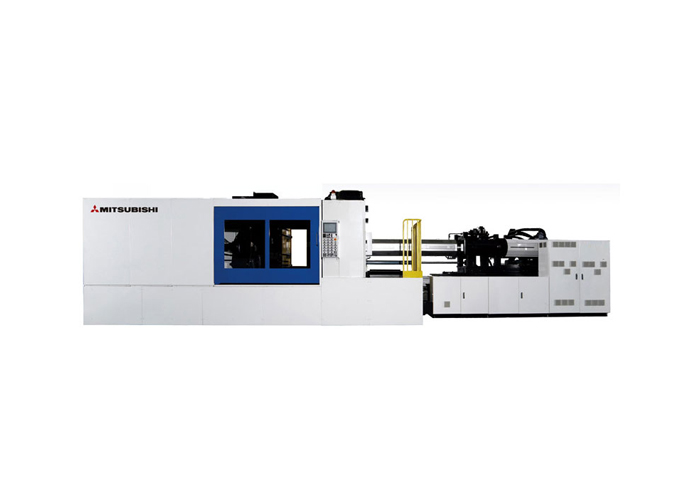

Mitsubishi MMX-Series 4000 Tons Machine
Mitsubishi has developed the latest of its hydraulically-driven injection molding machines -- "the MMX series" -- to meet the needs of emerging economies. The "MMX series" combines the latest technologies with experienced two-platen clamping and injection mechanism, and delivers excellent performance.With the ongoing surge in environmental awareness in recent years, there has been a growing demand, especially among the emerging economies, for injection molding machines that meet the following requirements - - low environmental impact, energy efficiency, high quality, high reliability, high productivity and low price. The latest "MMX series" hydraulic injection molding machines from Mitsubishi fully meet these customer needs.
Specification of Mitsubishi MMV Series
| Injection Unit | Units | 4000MMV (470) | 4000MMV (740) | 4000MMV (1100) | 4000MMV (2100) |
|---|---|---|---|---|---|
| Screw Diameter | mm | 150 | 175 | 200 | 250 |
| Theoretical Injection Capacity | cm3 | 13,200 | 21,000 | 31,400 | 61,300 |
| Injection Mass Polystyrene (PS) | g | 12,100 | 19,300 | 28,900 | 56,400 |
| Injection Mass Polyethylene (PE) | g | 9770 | 15,500 | 23,200 | 45,400 |
| Maximum Injection Pressure | MPa | 160.8(1640) | 156.9(1600) | ||
| Injection Rate | cm3/sec | 1275(1060) | 1450(1450) | 1675(1675) | 2300(2300) |
| Plasticizing Capacity Polystyrene (PS) | kg/hr | 810(675) | |||
| Plasticizing Capacity Polypropylene (PP) | kg/hr | 740(740) | 700(700) | 950(950) | |
| Screw RPM | rpm | 118(98) | 87(87) | 59(59) | 44(44) |
| Clamping Unit | Units | 2500MMX (values) |
|---|---|---|
| Mould Clamping Force | kN (tonf) | 3200 X 2800 |
| Mould Opening Force | kN (tonf) | 2300 X 1850 |
| Mold Closing Speed (High) | m/min | 2700 |
| Mold Opening Speed (High) | m/min | 3700 |
| Platen Size (H x V) | mm | 1000 ~ 1900 |
| Tie-bar Space (H x V) | mm | 686(70) |
| Clamp Capacity Stroke | mm | 350 |
| General Unit | Units | 4000MMV (470) | 4000MMV (740) | 4000MMV (1100) | 4000MMV (2100) |
|---|---|---|---|---|---|
| Electric motor for pump | kW | 165 | 275 | 330 | 440 |
| Electric Heater capacity (380V/50Hz) | kW | 72.3 | 111.8 | 128.8 | 210.8 |
| Total hyd. system oil quantity[ In tank ] | L | 2900 | 4000 | 4500 | |
| Machine dimensions (L) | m | 13.8 | 15.2 | 15.8 | 17.6 |
| Machine dimensions (W) | m | 5.2 | 5.7 | 5.8 | 5.9 |
| Machine dimensions (H) | m | 4.2 | |||
| Shipping Mass | tons | 200 | 213 | 233 | 243 |
